Author Topic: My Scout/J20 build *New updated pic  (Read 7364 times)

My Scout/J20 build *New updated pic
« on: 11/03/08, 07:23PM »

Offline 2jeepdrivers

  • Ranch Local
  • *
  • Posts: 131
I have talked to a couple of guys on here about my Scout II/ Jeep j20 project I have been working on so I thought I would post a couple of pics with some details. Hopefully I can continue to add to this till it is done.

Specs: 76' Scout II body, 76' Jeep J20 frame, D60 rear 4:10's welded, 8-lug D44 front, AMC 304 I have a 360 on the stand to build after the Scout is done and I am hoping to get down to willysman's place and pic up a spare 360 from him here pretty soon. T18, D20, J20 front springs over the axle, inboarded F250 rear springs that are suprisingly soft. I am working on tucking a Jeep Cherokee gas tank up into the frame because right now I am perfectly flat on the bottom and would like to keep it that way. I still have a long ways to go, I have to wire it, plumb it get the body mounted solidly, lots of gusseting, cage seats, brakes all of the little stuff that takes forever.

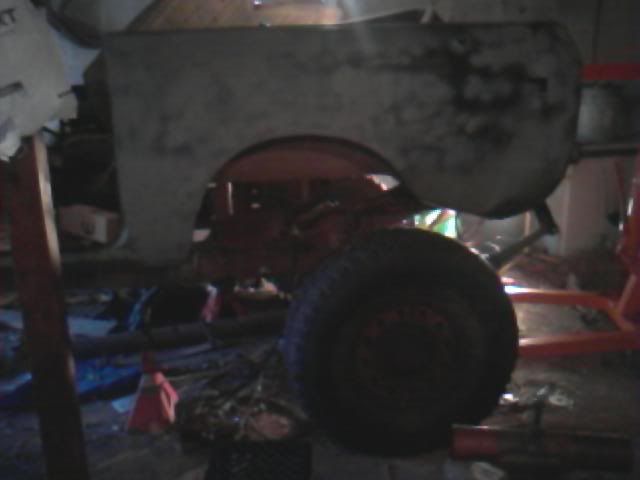

Anyways here are a couple of crappy cell phone pics.



« Last Edit: 08/23/09, 07:43PM by 2jeepdrivers »
55' Willys Wagon Injected AMC 360, th400, 203/205, D44,12bolt
66' CJ6 in process of 302,c6,D44's,33's, soa and coils, full cage and some armor

Re: My Scout/J20 build
« Reply #1 on: 11/04/08, 08:04AM »

Offline Lucky-jeeppup

  • Ranch Rocker
  • Ranch Local
  • *
  • Posts: 160
nice set up. cant wait to see it working
4PawDrive

Re: My Scout/J20 build
« Reply #2 on: 11/04/08, 05:30PM »

travass

  • Guest
If its gonna be H1 double beadlocks and 37" mtr's you'd want to run, give ford381stroker or myself a pm. -Travis

Re: My Scout/J20 build
« Reply #3 on: 11/04/08, 08:26PM »

Offline 2jeepdrivers

  • Ranch Local
  • *
  • Posts: 131
The ones that are on it came from Phillip. Do you happen to know if he has any tires by themselves left, I need one for a spare I forgot I had another 16.5 wheel to put a spare on when I picked up the set I have.
55' Willys Wagon Injected AMC 360, th400, 203/205, D44,12bolt
66' CJ6 in process of 302,c6,D44's,33's, soa and coils, full cage and some armor

Re: My Scout/J20 build
« Reply #4 on: 12/14/08, 06:31PM »

Offline 2jeepdrivers

  • Ranch Local
  • *
  • Posts: 131
Well I got a little more done to the Scout. Motor, tranny and t-case are in. Body is all mounted up and I started mounting the steering column and pedals. Just started wiring this evening. Progress has been kind of slow between the overtime I have been working and school, here are some pics that I hope came out a little better than the last ones.




I am 6'1" so that should put it in proportion as to the height a little.
55' Willys Wagon Injected AMC 360, th400, 203/205, D44,12bolt
66' CJ6 in process of 302,c6,D44's,33's, soa and coils, full cage and some armor

Re: My Scout/J20 build
« Reply #5 on: 12/14/08, 07:27PM »

Offline Jacksfork

  • Ranch Mayor
  • Ranch Local
  • *
  • Posts: 2535
  • "YOU GONNA PULL THEM PISTOLS OR WHISTLE DIXIE!!"
    • Southern Missouri Off Road Ranch
LOOKING GOOD....

BRANDON
SMORR
JEEPS NAME IS "THE JUGGERNAUT"



I WOULD LIKE TO THANK MY PARTNERS IN CRIME: PITBULL TIRES, RACELINE WHEELS,  GREEN COUNTY OFF-ROAD, BUILT2ROCK OFF ROAD, WHY NOT CUSTOMS, WILDERNESS 4x4  and TEDS AUTO & MORE!!

Re: My Scout/J20 build
« Reply #6 on: 12/15/08, 08:11PM »

Offline ford381stroker

  • Ranch Regulator
  • Ranch Local
  • *
  • Posts: 413
still got more tires.  give me a holler at 417-576-6317.

lookin good!
For parts, welding and fabrication needs, visit my website:  http://peakoffroad.com/

Re: My Scout/J20 build
« Reply #7 on: 01/08/09, 09:38PM »

Offline 2jeepdrivers

  • Ranch Local
  • *
  • Posts: 131
Here is a pic in the daylight I have meant to load for a while. Disregard the grill not being bolted in it is just setting there for the pic.
55' Willys Wagon Injected AMC 360, th400, 203/205, D44,12bolt
66' CJ6 in process of 302,c6,D44's,33's, soa and coils, full cage and some armor

Re: My Scout/J20 build
« Reply #8 on: 04/22/09, 08:05PM »

Offline 2jeepdrivers

  • Ranch Local
  • *
  • Posts: 131
Just a little update. I haven't had much time to work on it the last few months. Finally getting to the cage here are a few pics it is not done, still have to add gussets and seat bars and build a dash and a bunch of other crap.



55' Willys Wagon Injected AMC 360, th400, 203/205, D44,12bolt
66' CJ6 in process of 302,c6,D44's,33's, soa and coils, full cage and some armor

Re: My Scout/J20 build
« Reply #9 on: 08/15/09, 08:52PM »

Offline 2jeepdrivers

  • Ranch Local
  • *
  • Posts: 131
It runs!!! kind of I still have to time and button up the little stuff.
55' Willys Wagon Injected AMC 360, th400, 203/205, D44,12bolt
66' CJ6 in process of 302,c6,D44's,33's, soa and coils, full cage and some armor
